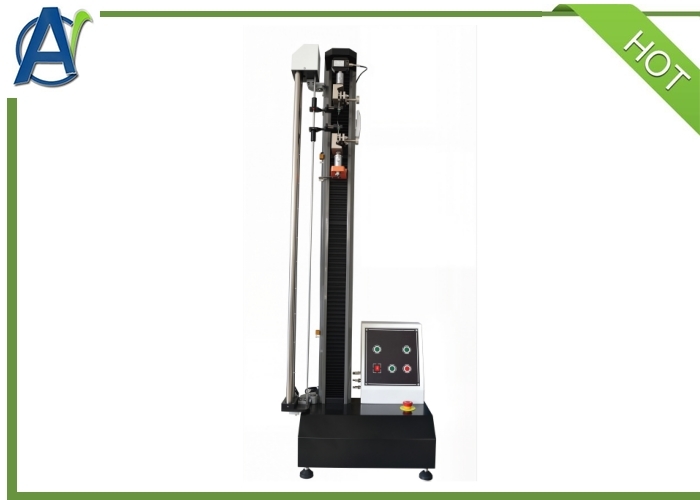

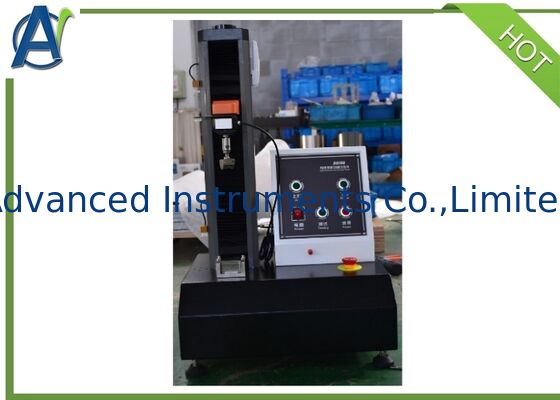

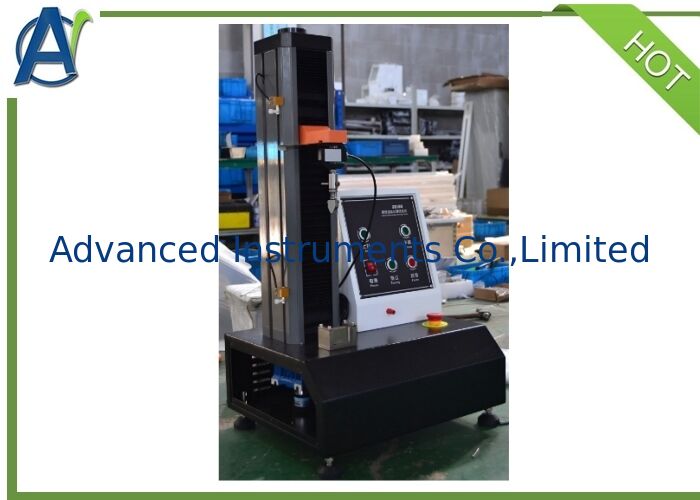

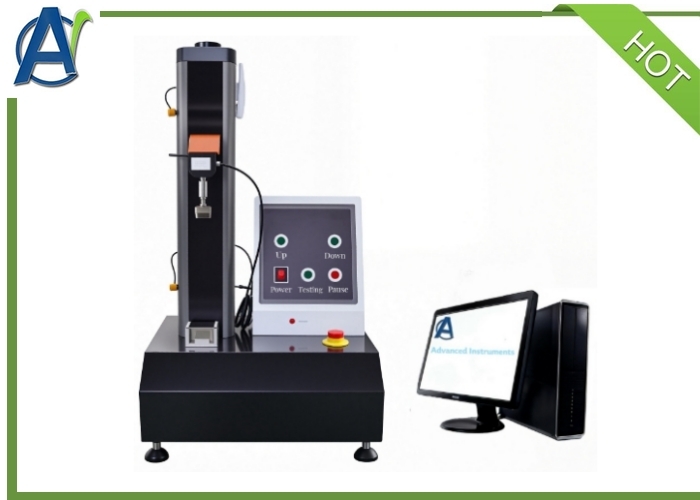

EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing

EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing
EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Advanced Instruments
Πιστοποίηση: EN50305-2018
Αριθμό μοντέλου: AIC-22190
Ποσότητα παραγγελίας min: 1 ΣΕΤ
Τιμή: $3000~$10000
Συσκευασία λεπτομέρειες: Θήκη από κόντρα πλακέ
Χρόνος παράδοσης: 60 ΗΜΕΡΕΣ
Όροι πληρωμής: L/C,T/T,D/P
Δυνατότητα προσφοράς: 20 Σετ/μήνα
Καλύτερη τιμή Επικοινωνήστε
Μετά το Service: Απάντηση σε 12 ώρες 12 μήνες Εγγύηση: 1 πλήρες έτος
Πακέτο μεταφοράς: Θήκη από κόντρα πλακέ πρότυπο δοκιμής: ΕΝ50305-2018
Τροφοδοτικό: AC220V,50/60Hz,2A Αποτελεσματικό εγκεφαλικό επεισόδιο: Περίπου 400 χλστ
Ταχύτητα επιτάχυνσης: 1N/S Διάμετρος πείρου χάλυβα: Φ0,45mm
Αισθητήρας: Κυψέλη φόρτωσης US Transcell τύπου S Δοκιμαστική τάση: 24V
Σύστημα ηλεκτρικής ενέργειας: Σερβοκινητήρας XINJE 400W Μέγιστη δύναμη δοκιμής: 200N (Προαιρετικό για χρήστες)
Επισημαίνω:

EN50305-2018

,

Cables Dynamic Cut-through Tester

,

Dynamic Cut-through Test Machine

General Introduction
1.1 Equipment overview

Railway Rolling Stock Cables Dynamic Cut-through Tester is used to test the insulation strength of railway locomotive and vehicle cables. Squeeze the surface of the finished cable with a steel needle with a diameter of 0.45mm, increasing the pressure at a constant rate until the insulation or sheath is cut through. The instrument automatically stops when the steel needle contacts the internal conductor or metal shield and records the maximum force value of the process.

1.2 Related standards
  • EN50305-2018

EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing 0

Technical parameters
  • Effective stroke: about 400mm.
  • Acceleration speed: 1N/S.
  • Steel pin diameter: Φ0.45mm.
  • Sensor: U.S. Transcell S-type load cell.
  • Power system: XINJE 400W servo motor.
  • Ball screw: Taiwan TBI2505 ball screw, high transmission precision, grinding process, good finish, good precision retention, long service life. The nut has good craftsmanship and high load capacity.
  • Rotary bearing: Japan NSK deep groove ball bearing.
  • Deceleration device: Outex precision vacuum cast aluminium reducer, speed ratio 1:15.
  • Guide bar: made of two φ25 bearing steel by surface hardening, the surface hardness can reach HRC58 or above.
  • Dustproof device: adopting Taiwan stacking dustproof cover to protect the screw and prevent dust from entering.
  • Body surface treatment: the use of U.S. DuPont powder, electrostatic spray paint process, high temperature 200 ℃ curing to ensure that the colour does not fade.
  • Control: computer + special software.
  • Profile: aluminium alloy one-time extrusion, high strength, small deformation, corrosion resistance.
  • Safety devices: overload shutdown function, up and down travel limiter, specimen cut-through shutdown function.
Technical specifications
  • Overall Dimensions: 500mm*420mm*850mm
  • Power supply: AC 220V, 50/60Hz, 2A

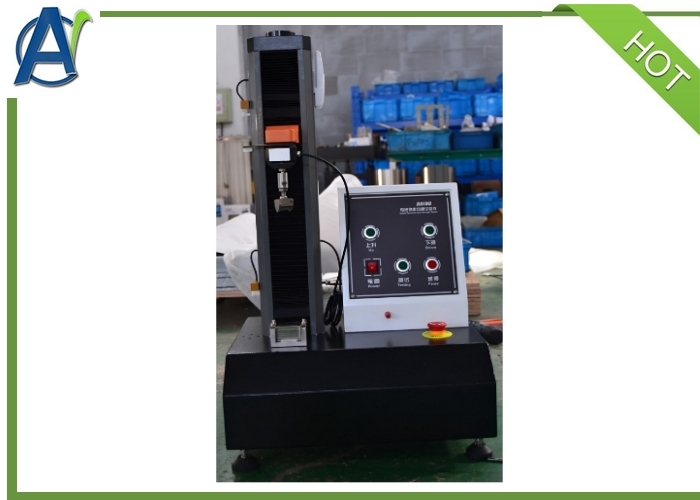

EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
