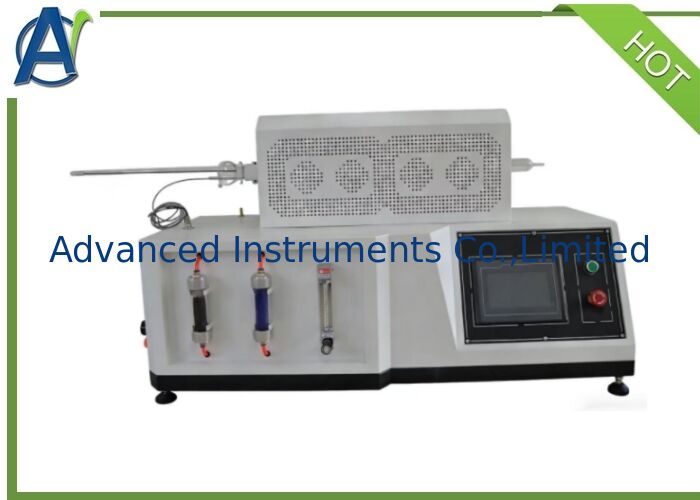

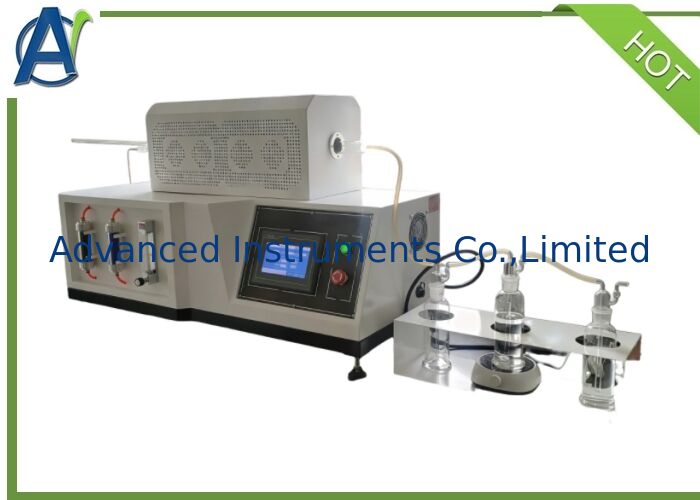

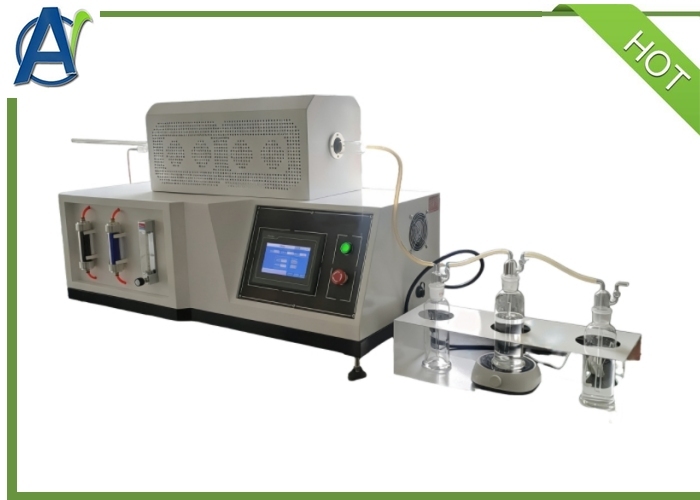

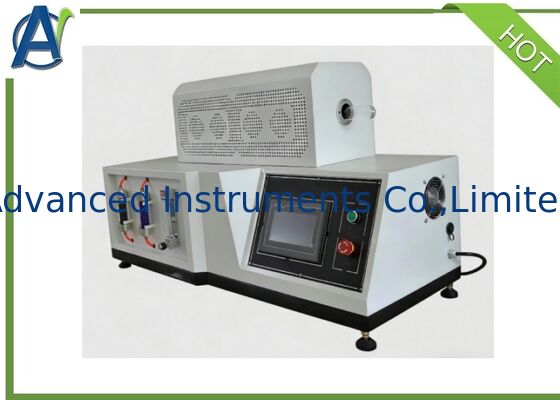

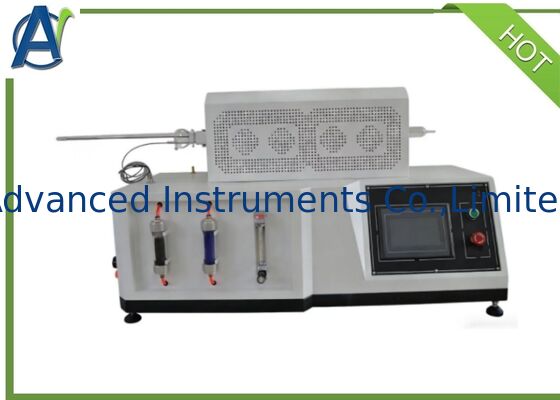

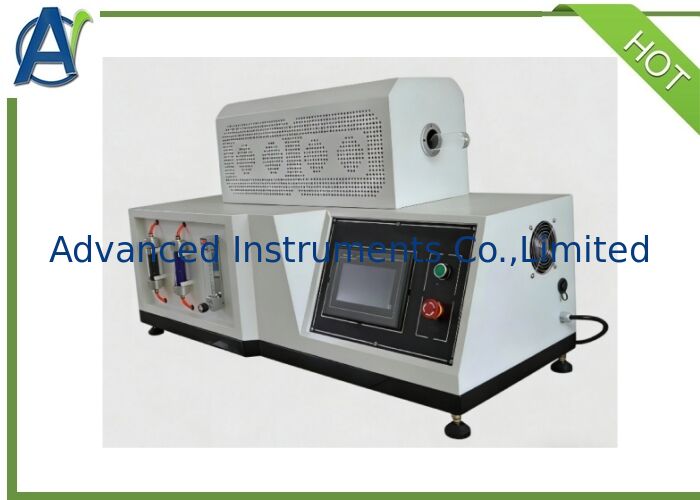

IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables

IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Advanced Instruments
Πιστοποίηση: IEC 60754~1&2
Αριθμό μοντέλου: AIC52161
Ποσότητα παραγγελίας min: 1 Σετ
Τιμή: $5000~$10000
Συσκευασία λεπτομέρειες: θήκη από κόντρα πλακέ
Χρόνος παράδοσης: 60 ημέρες
Όροι πληρωμής: L/C,T/T,D/P
Δυνατότητα προσφοράς: 20sets/μήνα
Καλύτερη τιμή Επικοινωνήστε
Μετά το Service: Απάντηση σε 12 ώρες 12 μήνες Εγγύηση: 1 πλήρες έτος
Πακέτο μεταφοράς: θήκη από κόντρα πλακέ Πρότυπο δοκιμής: IEC 60754-1&2
Τροφοδοτικό: AC220V,50/60Hz,2A Ενεργός άνθρακας (φιλτράρισμα αέρα): Πέρασμα
Σιλικόνη (Στέγνωμα στον αέρα): Ξηρό αέριο Μετρητής ροής: 0,1~1L/Min
Επίδειξη: Έγχρωμη οθόνη αφής 7 " θερμαντικός φούρνος: 220mm*600mm
Ισχύς Φούρνου Θέρμανσης: 4KW Αντικείμενο δοκιμής: Σύρματα και καλώδια
Επισημαίνω:

IEC 60754-1&2

,

PH & Conductivity Testing Device

,

Cable Gas Release Acidity Test Chamber

General Introduction

Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃).

Standards:

  • IEC 60754-1~2-1994
Technical parameters

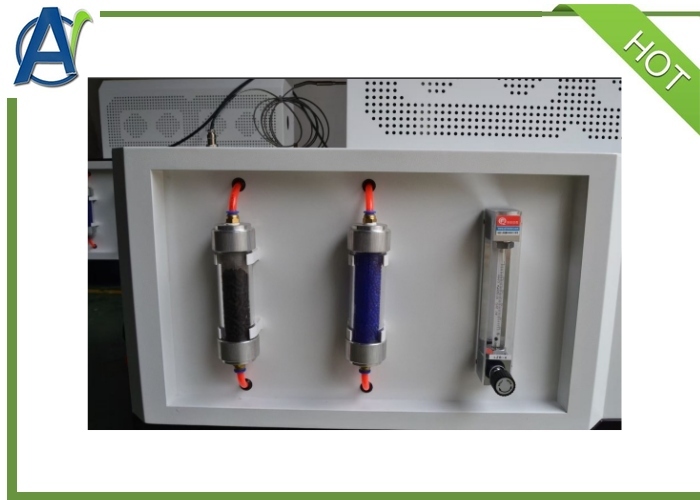

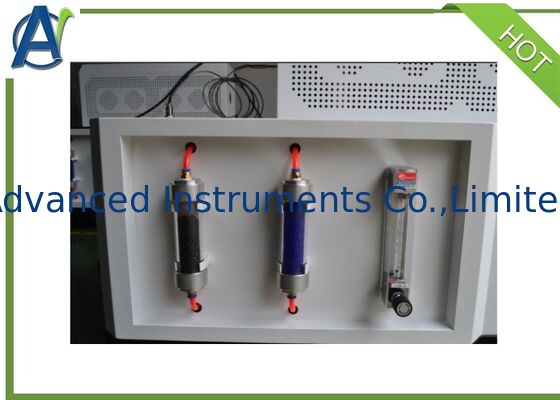

  • Activated carbon (air filtering): filter for filtering the supplied air
  • Silica gel (air drying): a device for drying the supplied air
  • Flowmeter: 0.1~1L/min, a device to control the flow of the air source
  • Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0~1300℃
  • Quartz tube: φ40×800
  • Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water
  • PH meter: a device used for measuring the pH acidity (ray magnetic)
  • Conductivity meter: a device for measuring conductivity of combustion gas(ray magnetic)
  • 7 "color touch screen and PLC and PID automatic calculation of the modulecontrol heating furnace temperature
  • Heating furnace: φ220×600; effective heating space: φ43×550; power: 4KW
  • Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup, quantity: 1
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables 0
Technical specifications
  • Dimensions: Main unit 1200mm(W)x520mm(D)x725mm(H)
  •                     Placement table 2500mm(W)x 600mm(D)
  • Power supply:AC220V, 50/60Hz, 21A
  • Reagents,glassware, gas source (provided by the customer)
IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
