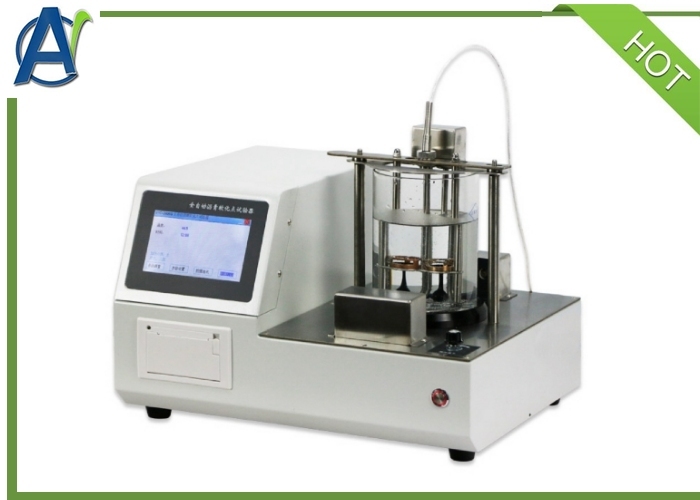

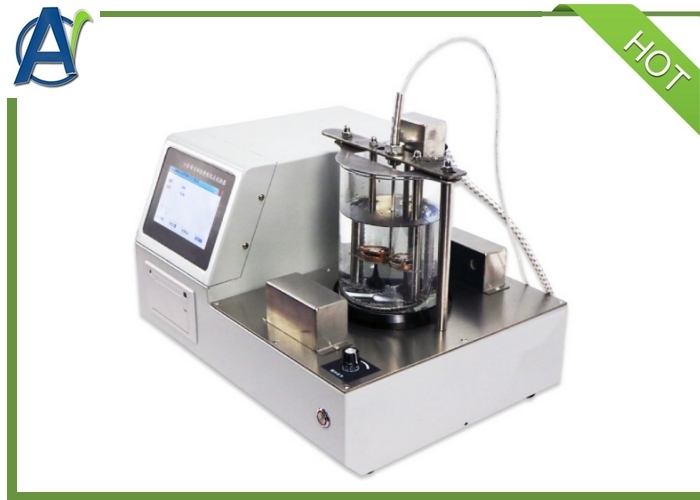

ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously

ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously
ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Advanced Instruments
Πιστοποίηση: ASTM D36
Αριθμό μοντέλου: AIC-2806
Ποσότητα παραγγελίας min: 1 Σετ
Τιμή: $3000~$5000
Συσκευασία λεπτομέρειες: θήκη από κόντρα πλακέ
Χρόνος παράδοσης: 20 ημέρες
Όροι πληρωμής: L/C,T/T,D/P
Δυνατότητα προσφοράς: 20 σετ ανά μήνα
Καλύτερη τιμή Επικοινωνήστε
Εγγύηση: 1 πλήρες έτος Μετά το σέρβις: Απάντηση σε 12 ώρες 12 μήνες
Πακέτο μεταφοράς: θήκη από κόντρα πλακέ Πρότυπο δοκιμής: ASTM D36
Τροφοδοτικό: AC220V±10% 50Hz Μέγιστη κατανάλωση ενέργειας: ≤500W
Σύρετε ταχύτητα: (500mm+10mm)/λεπτό Μέγιστη δύναμη έλξης: 1000N
Συνολική κατανάλωση ενέργειας: <700 W Ανάλυση θερμοκρασίας: 0,1 ℃
Εύρος μέτρησης: 5℃~160℃
Επισημαίνω:

ASTM D36

,

Automatic Softening Point Tester

,

Bitumen Ring-and-Ball Apparatus

General Introduction

The Automatic Asphalt Softening Point Tester is designed and made as per GB/T4507 Standard Test Methods for Softening Point of Petroleum Asphalt of National Standard of People's Republic of China , T0608 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the Industrial Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).
This Automatic Ring and Ball Test Instrument is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

Main technical features
  • This Automatic Ring and Ball Test Instrument adopts 32-bit ARM processor, color touch LCD screen, laser detection and other advanced technologies. It has the characteristics of homogeneous medium temperature, stable medium heating rate, automatic detection of softening point, excellent repeatability and reproducibility of test results.
  • The detection algorithm is advanced, and the influence of air bubbles generated in the heating process of filter media on the test results can be achieved.
  • This Automatic Ring and Ball Test Instrument can do two samples at the same time.
  • The test result can be printed out with inbuit printer automatically.

ASTM D36 Automatic Softening Point Tester with 0.1 ℃ Temperature Resolution for Bitumen Testing Using Ring-and-Ball Apparatus for Two Samples Simultaneously 0

Technical specifications
Power supply AC(220±10%)V, 50Hz
Total power consumption <700 W
Temperature resolution 0.1 ℃
Measurement range (1)  5 ℃~80℃  (softening point≤80 ℃)
(2)  32℃~160℃ (softening point >80 ℃)
Heating rate it will be adjusted to(5±0.5)℃/ min automatically after three minutes
Stirrer the electromagnetic stirring speed can be adjusted continuously, the stirring speed is (0~300) r/min
Cubage of beaker 1000ml
Test result Touch LCD screen shows results and printer to print
Communication Interface RS-232C
Ambient temperature 15℃~35℃
Relative humidity ≤85%
Dimension 400mm×300mm×250mm
FAQ

1.What's the delivery time?
About 20days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person
