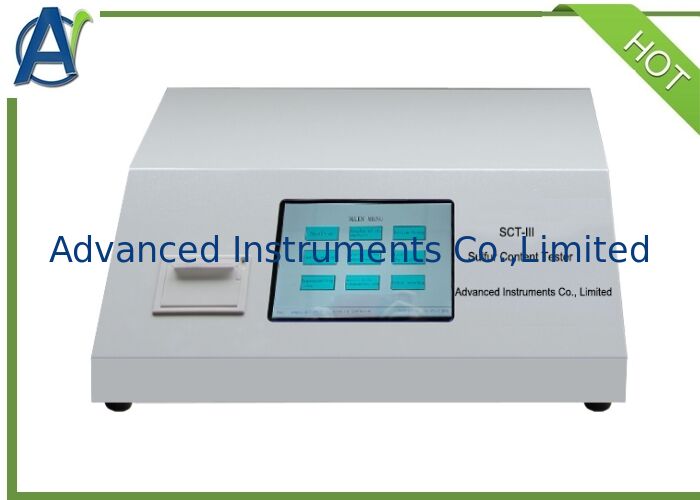

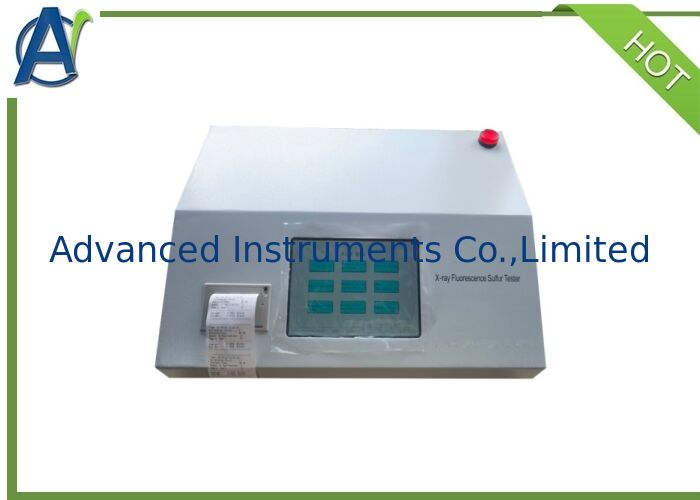

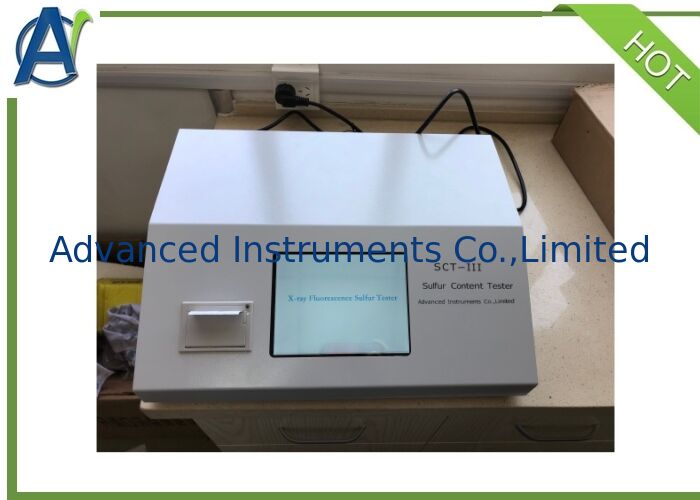

ASTM D4294 Petroleum Products X-ray Fluorescence Sulfur-in-Oil Analyzer

Βασικές πληροφορίες

Τόπος καταγωγής:	Κίνα
Μάρκα:	Advanced Instruments
Πιστοποίηση:	ASTM D4294
Αριθμό μοντέλου:	ΣΚΤ-III

Ποσότητα παραγγελίας min:	1 σετ
Τιμή:	US$10000-15000/set
Συσκευασία λεπτομέρειες:	θήκη από κόντρα πλακέ
Χρόνος παράδοσης:	15 ημέρες
Όροι πληρωμής:	T/T, L/C, D/P
Δυνατότητα προσφοράς:	20 σετ ανά μήνα

Καλύτερη τιμή Επικοινωνήστε

Πρότυπο δοκιμής:	ASTM D4294	Τροφοδοτικό:	AC220 V±10%, 50 Hz
Εύρος μέτρησης:	0,0017% έως 5%	Όριο ανίχνευσης:	10ppm
Ποσότητα δειγμάτων πετρελαίου:	6ml	Δείγμα σκόνης:	3 γραμμάρια
Χρόνος μέτρησης:	30,60,90,120 ή 150s	Καμπύλες βαθμονόμησης:	10
Θερμοκρασία περιβάλλοντος:	10~30℃	ΣΧΕΤΙΚΗ ΥΓΡΑΣΙΑ:	≤85% (30℃)
Βάρος:	13 κιλά
Επισημαίνω:	ASTM D4294 , Sulfur Content Tester , Petroleum Sulfur Apparaus

General Introduction

The Sulfur In Oil Analyzer is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate. It can meet the requirements of national standard of China GB/T 17040, SH/T0742 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294. It provides a measure to determine sulfur content during petroleum or petrochemical production process.

Product Advantages

1.The latest research results of GB/T 17040 in 2019.

2.The detection lower limit of sulfur content can reach 0.0017%, which can be widely used in the detection of sulfur content of related oil products with percentage content greater than this index.

3.The test uses few samples (3ml~5ml), the testing time is fast (1min~5min), and the test results are stable, accurate and reliable.

4.Mechanical and electrical integration microcomputer design, 8-inch wide angle colored touch screen, simple and beautiful interface.

5.With the method of fluorescence intensity ratio analysis, the temperature and air pressure can be automatically corrected, and the C / H ratio can also be corrected.

6.This Surfur-In-Oil Analyzer has an automatic diagnosis function, which automatically judges the working status of the instrument and automatically detects the working parameters.

7.The data storage capacity is large, and 4096 content analysis results, 8192 counting measurement data, and 10 calibration curves can be stored by default. The stored data can be queried or uploaded to a computer through the RS-232 standard communication port.

8.The working curve is automatically selected by default when the instrument is turned on, without user intervention.

9.The measurement result unit can be selected, ppm or (m/m)%.

The Technical Specifications and Parameters

1	Measuring range	0.0017%~5%
2	Repeatability (r)	<0.4347 X0.6446
3	Reproducibility (R)	<1.9182 X0.6446
4	Detection limit	17 PPM
5	Oil sample quantity	3 ml-5ml
6	Measurement time	it can preset 30, 60, 90, 120, 150s, measurement repeat times:1, 2, 3, 5, 10(times). (The default measurement time of this instrument is 3 minutes, and the fastest measurement time is 1 minute.)
7	Sample measurement	Automatic measurement of single sample, average value and standard deviation at the end of measurement.
8	Calibration curve numbers	it can save 10 calibration curves.
9	Working condition	Ambient temperature: (10~30)ºC Relative humidity: ≤85% (30ºC)
10	Dimension	480mm×380mm×140mm
11	Weight	13KG

ASTM D4294 Petroleum Products X-ray Fluorescence Sulfur-in-Oil Analyzer 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
