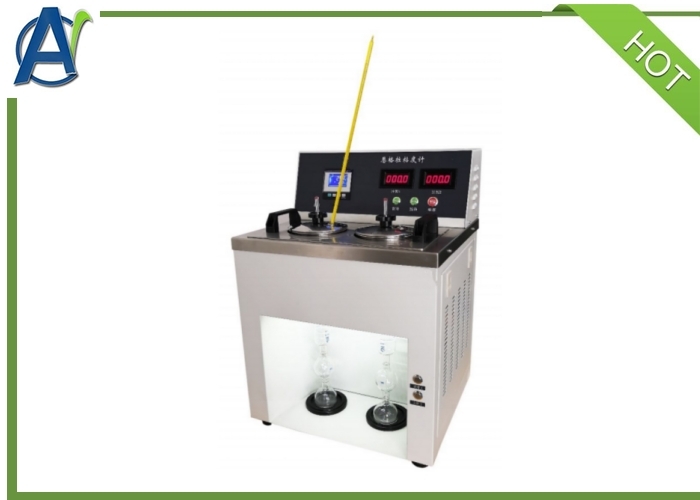

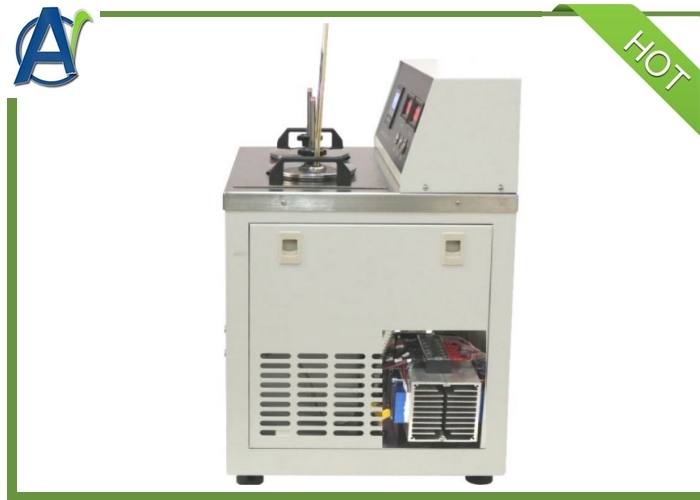

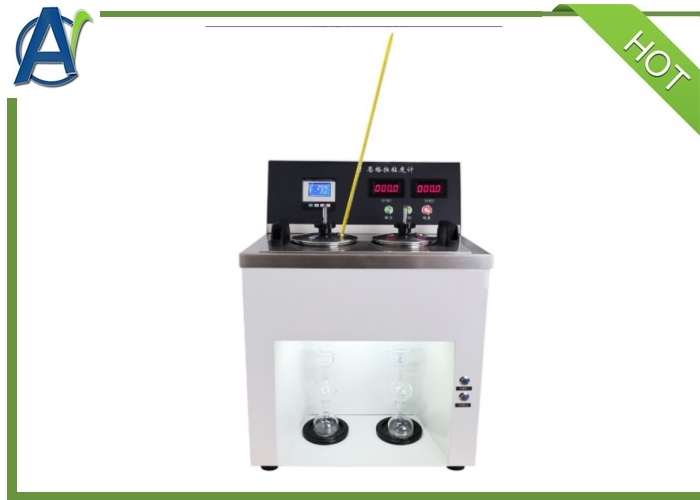

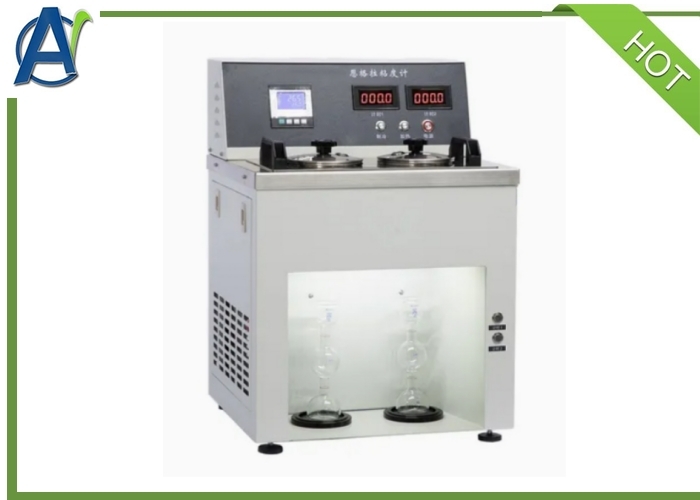

ASTM D1665 Determination of Engler Viscosity for Tar Products

ASTM D1665 Determination of Engler Viscosity for Tar Products
ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products ASTM D1665 Determination of Engler Viscosity for Tar Products
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Advanced Instruments
Πιστοποίηση: ASTM D1665
Αριθμό μοντέλου: EV-II
Ποσότητα παραγγελίας min: 1 σετ
Τιμή: US$2000-3000/set
Συσκευασία λεπτομέρειες: θήκη από κόντρα πλακέ
Χρόνος παράδοσης: 15 ημέρες
Όροι πληρωμής: T/T, L/C, D/P
Δυνατότητα προσφοράς: 50 σετ ανά μήνα
Καλύτερη τιμή Επικοινωνήστε
Πρότυπο δοκιμής: ASTM D1665 Τροφοδοτικό: AC220 V±10%, 50 Hz
Κατανάλωση ρεύματος: 1200W Προσδιορίστε τη θερμοκρασία: 20~100℃
Ψύξη και έλεγχος θερμοκρασίας: (20±0,1)℃,(25±0,1)℃ Καθαρό Βάρος: 24 κιλά
Επισημαίνω:

ASTM D1665

,

Engler Viscosity Tester

,

Engler Viscometer of Bitumen and Bituminous Mixtures

General Introduction

This ASTM D1665 Engler Viscometer is designed in accordance with the Chinese national standard GB/T 266 "Determination of Engler Viscosity for Petroleum Products" and the industry standard JTG E20 "Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering," specifically method T0622 "Bitumen Engler Viscosity Test (Engler Viscometer Method)." It is used to measure the ratio of the time (in seconds) taken for a liquid to flow out from the Engler viscometer under specified temperature and volume conditions to the time taken for distilled water to flow out at 20°C. This ratio is defined as the Engler viscosity of the liquid, expressed in degrees Engler.

The instrument can simultaneously test two samples under the same temperature conditions and calculate the average flow time, making it an ideal device for determining the Engler viscosity values of petroleum and bituminous products.



Product Advantages
1.This Engler Viscosity Apparatus is a tabletop, integrated, inner and outer pot is produced by mold, 304 stainless steel, corrosion and oxidation resistance.

2.The Engler Viscosity Tester can test 2 specimens at the same time in the same temperature environment and generate a time average, which is an ideal instrument for determining the engera viscosity value of petroleum products and asphalt products.

3.The Engler Viscosity Test instrument adopts semiconductor refrigeration, which meets the standard 25°C test requirements.

4.The Engler Viscosity Testing Equipment adopts high-precision temperature controller and sensor, and the temperature control accuracy reaches ±0.1°C.

5.It comes with a timing device, which saves the trouble of additional electronic stopwatch, and is convenient and fast to operate.

6.It has been calibrated for water value from the factory, and the user can perform the En-style viscosity test after receiving it, which is convenient and reliable.

7.Enshi pen is made of copper material, which has a long service life and is durable.

8.The instrument is equipped with accessories specified in GB/T 266 and JTG E20 T0622 as standard to meet the requirements of double standard experiments.

ASTM D1665 Determination of Engler Viscosity for Tar Products 0


The Technical Specifications and Parameters



Power supply
AC (220 ±10%)V, 50 Hz
Total power consumption
≤1200W
Standard water value
K20=(51±1)s,(when the sample is asphalt:K20×0.224)
Temperature range
(20~100)ºC
Cubage of water bath
20L
Temperature controlling (20±0.1)ºC, (25±0.1)ºC
Temperature control accuracy ±0.1ºC
Ambient temperature (15~28)ºC
Relative humidity ≤ 85%
N.W 24KG
Dimension 420mmx380mmx590mm



ASTM D1665 Determination of Engler Viscosity for Tar Products 1



FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
