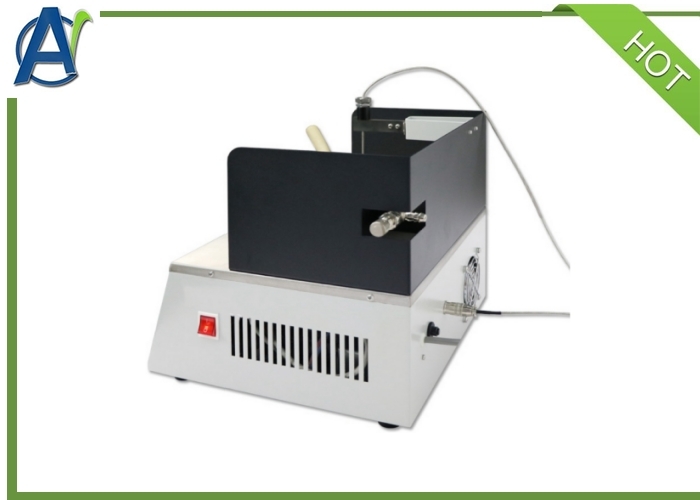

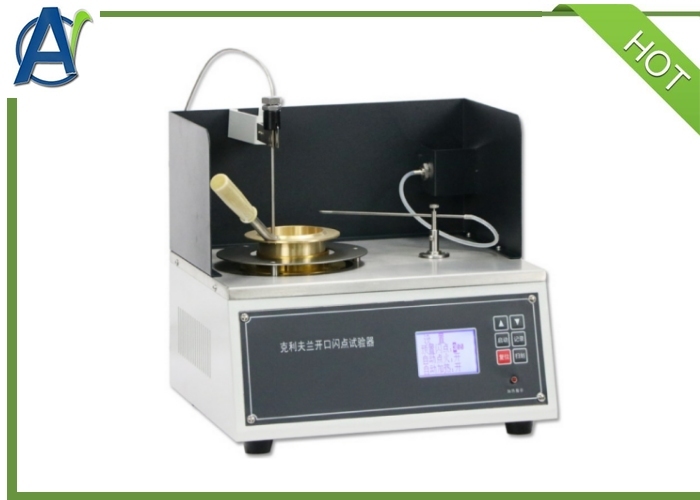

ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing

ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing
ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing
Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: Advanced Instruments
Πιστοποίηση: ASTM D92; ISO 2592
Αριθμό μοντέλου: ΕΡΥΘΡΟΞΥΛΟ
Ποσότητα παραγγελίας min: 1 σετ
Τιμή: US$1500-2000/set
Συσκευασία λεπτομέρειες: θήκη από κόντρα πλακέ
Χρόνος παράδοσης: 15 ημέρες
Όροι πληρωμής: T/T, L/C, D/P
Δυνατότητα προσφοράς: 100 μέτρα ανά μήνα
Καλύτερη τιμή Επικοινωνήστε
Τροφοδοτικό: Δυνατότητα εκπομπής σε θερμοκρασία ≤ 100 kPa Ακρίβεια: 0,1 ℃
Διαστάσεις: 380mm×320mm×350mm (Μ×Π×Υ,) Καθαρό Βάρος: 9 κιλά
Πρότυπο δοκιμής: ASTM D92; ISO 2592 Ελεγχος: Ημι αυτόματος
Επίδειξη: οθόνη υγρού κρυστάλλου Σειρά: RT~400ºC
Επισημαίνω:

Open Cup Flash Point Testing Machine

,

ASTM D92 Flash Point Tester Manufacturer

,

Open Cup Flash Point Tester Factory


Product Description
This Cleveland Open Cup Flash Point Tester is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.The Open Cup Flash Point Testing Machine is applicable to all petroleum products with flash points above 79ºC and below 400ºC.

Product Advantages
1. Adopt microcontroller control technology, LCD screen display; Chinese human-machine dialogue interface, easy to operate.
2. The LCD screen sets the experimental parameters and displays the specimen temperature in real time; when the flash point appears, press the record button to display and save the flash point value.
3. High-precision sensors are used to capture the flash point value, and the system automatically records it; it eliminates the data deviation caused by manual observation and makes the data more accurate and reliable.
4. Novel design and compact structure; Users only need to match gas or other civil combustible gas to carry out the test, which is easy to use and the test results are accurate.
5. With fast cooling function, this Flash Point Tester can improve the efficiency of the test.

ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing 0

Main Technical Specifications
1.Temperature control: Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.
2.Temperature display: LCD shows temperature parameters. The display range is 0ºC~400ºC, display accuracy is 0.1ºC.
3.Flash point detecting device: It applies the test flame automatically.
4.Temperature sensor: RTD, PT100
5.Igniting device: (1) Ignition source: coal gas (or civil gas)
(2) Flame diameter is 3.2mm~4.8mm
6.Ambient temperature: (15~35)ºC
7.Relative humidity: ≤85%

Full set and technical documents
Full set of instrument
No. Item Unit Qty Remarks
1 Main unit Set 1
2 Oil cup Piece 1
3 Igniting gun Piece 1
4 Latex pipeφ3 0.25m Piece 1
5 Outfiring cap Piece 1



Technical documents

(1) Operation Manual 1 piece
(2) Quality Certificate 1 piece
(3) Repair Guarantee 1 piece


Package Photos



ASTM D92 ISO 2592 Cleveland Open Cup Flash Point Test Instrument for Oil testing 1



FAQ

1.What's the delivery time?
About 15 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
